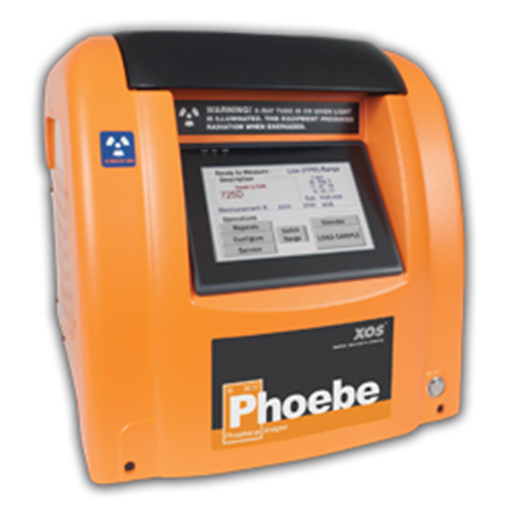

Phoebe Phosphorous Analyzer – 401852-01M

Phoebe Phosphorous Analyzer – 401852-01M

Phosphorus Determination in Hydrocarbon and Aqueous Matrices

From crude oil to bio-fuels, in additives or water, Phoebe benchtop analyzers deliver exceptional precision and accuracy for complete phosphorus analysis. It is very easy to operate with an intuitive touchscreen enabling use in various industrial environments. Phoebe is hassle-free and does not require extensive sample preparation, consumable gasses, or sample conversion. Phoebe is available with Accu-flow.

    Features

    Powered by MWDXRF, Phoebe delivers a limit of detection of 0.4 ppm in hydrocarbon matrices in a 10-minute measurement cycle.

    • Easy to use
    • Extremely low maintenance
    • Total phosphorus analysis
    • For use in multiple application areas
    • Hassle-free sample prep

    Easy to use

    User-friendly with a touch screen interface. Just plug-it-in and measure results with one touch: power is only utility.

    Extremely low maintenance

    No sample dilution, conversion gasses, heating elements, quartz tubes or columns

    Total phosphorus analysis

    Total phosphorus analysis in hydrocarbons (including crude-oil), bio-fuels, and aqueous matrices.

    For use in multiple application areas

    For use in refineries, additive plants, oil recycling facilities, and test labs.

    Hassle-free sample prep

    Utilizes standard XRF sample cups.

    Accu-flow: No
    Calibration curves: 8 calibration curves. Automatic and Manual Calibration functionality.
    Catalysts: No
    Communication Capabilities: Printer, Ethernet: LIMS Connectivity (optional)
    Concentration: In ppm: 2, 5, 10, 15, 20
    Consumable/Utility Gas: None
    Dimensions: Depth: 19.7 in / 50.0 cm
    Dimensions: Height: 13.4 in / 34.0 cm
    Dimensions: Width: 14.6 in / 37.0 cm
    Element: 0.4 ppm at 600 s
    Measurement Time: User selectable 30-900 s, 600 s typical
    Options: LIMS Connectivity
    Range: 0.4 ppm – 3000 ppm
    Repeatability: ppm – r
    2 – 0.8
    5 – 1.0
    10 – 1.4
    15 – 1.7
    20 – 1.9
    Reproducibility: ppm – R
    2 – 1.2
    5 – 1.6
    10 – 2.0
    15 – 2.5
    20 – 2.8
    Sample Cup Type: Standard XRF Cup
    Sample Matrix: Hydrocarbon
    Specific Technology: MWDXRF
    Type: Benchtop
    Weight: 70 lbs / 32 kg
    What’s included?:  Quick-Start Guide, Operations Manual, radiation survey, 6′ drain tubing, spare fan filter, printer, printer cable, printer ink, one roll printer paper, spare fuse, 100 sample cups, 100 prolene films, sample stand, spare primary window and one set calibration standards – 6 x 10 mL.
    XRF Film Type: Prolene
