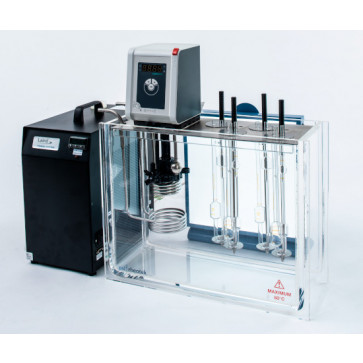

Constant Temperature Viscometer Bath Low Cost Stirred Liquid Bath for control of temperature, suitable for Kinematic Viscosity, Solution Viscosity & Density testing. Other voltages are available.


    • Calibration to 0.01ºC
    • 4 Viscometer positions
    • Small footprint
    • Cooling coil built-in
    • High – Low warning limits
    • Splash proof keypad
    • Range 15ºC to 60ºC

The Visibility bath is very easy to operate. Using the touchpad on the control unit, the set-point is keyed in. The set-point can be programmed and calibrated to two decimal places. A thermometer holder for the precision thermometer is built in. Safety features include a  low liquid level switch, an upper-temperature limit warning, a low-temperature limit warning, and a high-temperature cut-out device.

Excellent Visibility
The bath construction affords full visibility of up to 4 viscometers, which can be placed in the bath simultaneously.

Simple Design
An advantage of the single-walled design is that the Visibility Bath displays excellent temperature stability at 40 degrees C without the use of an external chiller. This makes the Visibility Bath an excellent choice for testing the Kinematic Viscosity of Biodiesel for product specification.

Built-in cooling coil
The Visibility bath can be used from 15 to 60°C and is supplied with a built-in cooling coil. Operation at temperatures below or near ambient requires an external source of chilling. This is provided by a cool liquid, which is passed through the cooling coil.  A low-cost recirculating chiller is available from PSL to provide the cooling required. The RHEOTEK TLC-1 Chiller is specially designed for operating with the TCB-7MkII bath.

Stability Certificate
All Visibility baths are supplied with a certificate of temperature stability and uniformity. Excellent circulation technology provides superior uniformity of temperature in the Visibility Bath.

Range 15°C to 60°C
Temperature Stability Typical ± 0.015°C
Volume 25 Liters
Heater Capacity 230V 2000W
Heater Capacity 115V 1000W
1000W 500mm x 200mm x 550mm
Internal Depth 400 mm
Net Weight 12 kg
Bath Liquid Silicone oil, mineral oil or de-mineralized water
