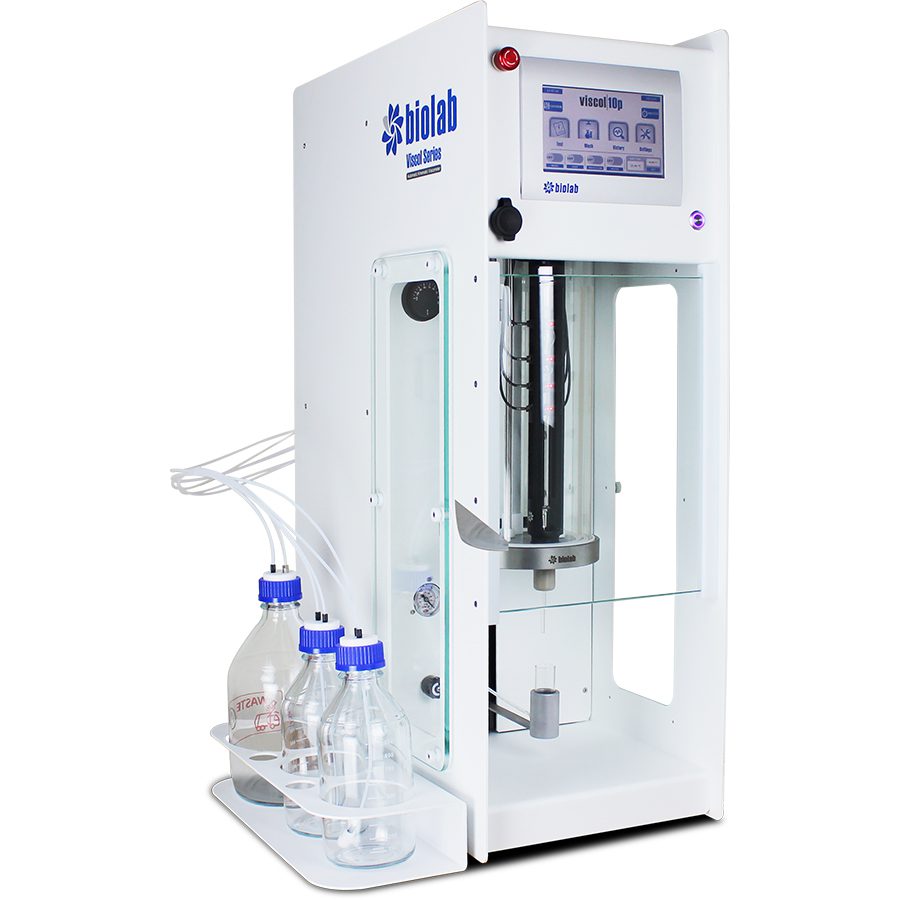

Viscol-10P Automatic Polymer Viscometer
Viscol-10P Automatic Polymer Viscometer, equipped by the latest temperature control, detector, chronometer and washing properties. With different models for oil/fuel, polymer, bitumen, paper/pulp etc. Viscol-10 Series Kinematic Viscometers are developed for the determination of kinematic viscosity of newtonian fluids at wide temperature and viscosity range.
All the operations as viscosity measurement, viscometer cleaning, calibration etc. are handled by the polymer viscometer automatically. This kinematic viscometers provide the most reliable results for research, development and quality control practices without any user intervention.
Viscol-10P Polymer Viscometer Measures: Relative Viscosity, Specific Viscosity, Reduced Viscosity, Inherent Viscosity, Intrinsic Viscosity
Methods
ASTM D2857, ASTM D789, ASTM D4603, ASTM D1243, ASTM D1795, ISO 1628, ISO 307, IEC 60450, ASTM D4243, ASTM D871, ISO 5351, TAPPI 230
Features
- Fully compliant polymer viscosity measurements with ASTM D789, ASTM D4603 and all related standards
- Temperature range from 10°C to 140 °C
- High chemical resistant structure
- Wide range (170 Fold) viscometer tubes
- Viscosity detection from 0,5 cSt to 25.000 cSt
- Full automatic operation
- Dual solvent usage as a standard
- Automatic cleaning with low solvent consumption
- Easy tube change
- Full control from Windows based touch panel PC
- Low bath oil and over temperature warnings
- Small footprint
Specifications
| Measurement range | 0.5 cSt – 25000 cSt |
| Viscometer type | Ubbelohde |
| Temperature range | 10°C to 140 °C |
| Temperature precision | 0.001 °C |
| Time detection precision | 0.001 s |
| Sample volume | 10-15 mL |
| Data transfer | USB & PC |
| Weight | 40 Kg |
| Dimensions | 30 x 50 x 80 cm |
| Power requirement | 220 VAC – 50 Hz |
