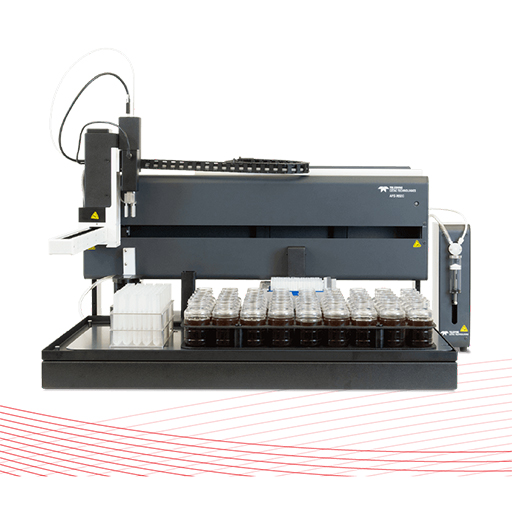

APS-7650G Gravimetric Sample Preparation
- Integrated pipettor for zero carryover
- Import/export sample information
- User-friendly OilEase™ software
- Dilution range 10-100x
- Sample viscosities up to 1000 cSt
- Accurate to ± 0.1 mg
- Automatically dilutes samples by weight on the integrated balance
Simplify preparations
The fully automated system replicates manual dilution step-by-step, from the vial gripper to the scale to the mixer. It even records sample data for direct import into the ICP software.
Smart sample handling
Customizable vortex mixing homogenizes samples thoroughly and quickly. Intelligent sample dispensing automatically adjusts for different viscosity samples.
Maintain sample integrity
The system uses a fresh pipette tip for every dilution, just like you do by hand. Active drip retention technology prevents cross-contamination and spills.
Customize sample routines
The OilEase software makes it easy to create custom methods and apply them to specific samples in a sequence.
Let people be people!
The best feature of the APS-7650G system is the labor it saves. With the time-consuming sample dilution process automated, your team is freed up to put their minds to other tasks in the lab.
|
Autodilutor dimensions |
Height* |
57cm |
(22.5 in) |
|
Width |
80 cm |
(31.5 in) |
|
|
Depth* |
69cm |
(27in) |
|
|
Weight |
45kg |
(99 lbs) |
|
|
*allow extra space for cables/tubing |
|||
|
Syringe pump dimensions |
Height |
30.5 cm |
(12 in) |
|
Width |
7.5 cm |
(3 in) |
|
|
Depth* |
18 cm |
(7 in) |
|
|
Weight |
3.7 kg |
(8.2 lbs) |
|
|
*allow extra space for cables/tubing |
|||
|
Capacities |
Sample racks: |
Up to 3racks, up to 180 samples |
|
|
Collection racks: |
Up to 3racks, up to 180 samples |
||
|
Rack options |
Tube racks: |
60, 80, and OE4 96 position racks |
|
|
Bottle racks: |
45 position and OE4/OE8 32 position |
||
|
Pour off cups: |
90 position cup rack with overflow retention for easy pour off |
||
|
Custom racks options available |
|||
|
Hardware interfaces |
RS-232 and USB |
||
|
Power requirements |
100-240 VAC, 47-63 Hz, 1.9 A |
||
|
Minimum computer requirements |
Microsoft Windows® 10 or later operating system |
||
|
4 GB RAM |
|||
|
1 COM or USB port |
|||
|
Import/export file formats |
SIF, XLSX, CSV |
||
|
Warranty |
2 year limited |
||
