EC 3000 Saybolt – 163020
Progressing from Visual to Automatic Color Measurement
- 3 Field Comparator View & Numeric Results
- Visual Representation Aligned to the Comparator 3000
- Validation Liquid and Glass Standard Included
- Immediate and Accurate, Straight from the Box
The EComparator series advances color measurement, enabling you to progress from Visual (subjective) to Electronic (objective) results. With the EComparator series, you can now view the color difference with on-screen color and on-screen numerical display.
Applications
Petroleum Oils and Waxes
Methods: ASTM D156, ASTM D6045
- Dual Ability to View Color Measurement
On-screen color
On-screen numerical display - Easy Transition from Visual to Electronic Measurements
Some color graders who are used to the traditional comparator series sometimes find the upgrade to an electronic system daunting. The assurance of relying on physical color difference is diminished. This transition has now been made easy. - Touch Screen Technology
Enables you to easily program the instruments with instinctive menus on screen. - Programmable Settings
You can set language*, date and time, view preferences, and create projects with individual tolerance settings. - On-Screen Warning System
You can react immediately to results that might be out of tolerance with immediate information on the sample.
Within tolerance = green
Outside tolerance = red
On border of tolerance = amber - User-Friendly Ergonomics and Intuitive Interface
You are guaranteed to be up and running quickly and easily supported. - Easy storage and sharing of results
Large data storage (> 20,000 readings) and USB connectivity ensure your results can be stored and easily shared. - Single Scale Measurement
The EC 3000 Saybolt provides you with an individual scale to measure Saybolt Color (ASTM D 156, ASTM D6045).* Supported languages: English, French, German, Spanish, Italian, Chinese, Japanese, Russian.
| Applicable Standard | ASTM D156 ASTM D6045 |
| Color Type | Transparent |
| Display | Size: 3.5 inch; Resolution: 320 x 240; Colour: 24 Bit (True Colour) |
| Interfaces | USB |
| Internal Storage | > 20,000 readings |
| Power Supply | USB 2.0 (mini USB plug) 4 batteries (AA) |
| Portability | Portable |
| Languages User Interface | German, English, French, Spanish, Italian, Russian, Chinese, Japanese |
| Dimensions | 106 x 57 x 210 mm |
| Title | Scale Range | Scale Resolution | Applicable Standard |
|---|---|---|---|
| Saybolt Colour | -16 – +30 | 1 unit | ASTM D156, ASTM D6045 |

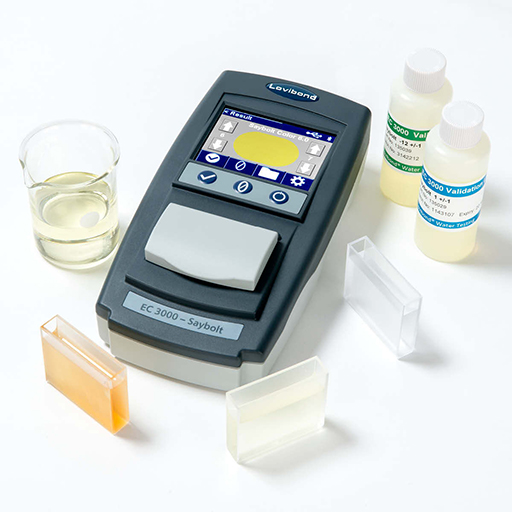

Portable case including:
- EC 3000 instrument
- 2 x W100 OG 50mm glass cells
- 2 x W100 50mm plastic cells
- 2 x glass reference standards
- 2 x 60 mL liquid reference standards
- Power supply (UK, EU, US plug)
- USB cable
- Pot of 4 x AA batteries
| Title | Glass Standard Values | Filters | Part Number |
|---|---|---|---|
| Saybolt (only PFX/PFXi880/950/995) |
Approximate Value:
|
1 | 139583 |
| Saybolt Color Filter Set (only PFX/PFXi880/950/995) |
|
5 | 139580 |
| Saybolt Color Filter Set (only PFX/PFXi195) |
|
5 | 139390 |
| Saybolt – EC3000 |
Approximate Value:
|
3 | 135160 |
| Title | Part Number |
|---|---|
| Saybolt Color -10 | 134040 |
| Saybolt Color 0 | 134050 |
| Saybolt Color +12 | 134060 |
| Saybolt Color +25 | 134070 |
