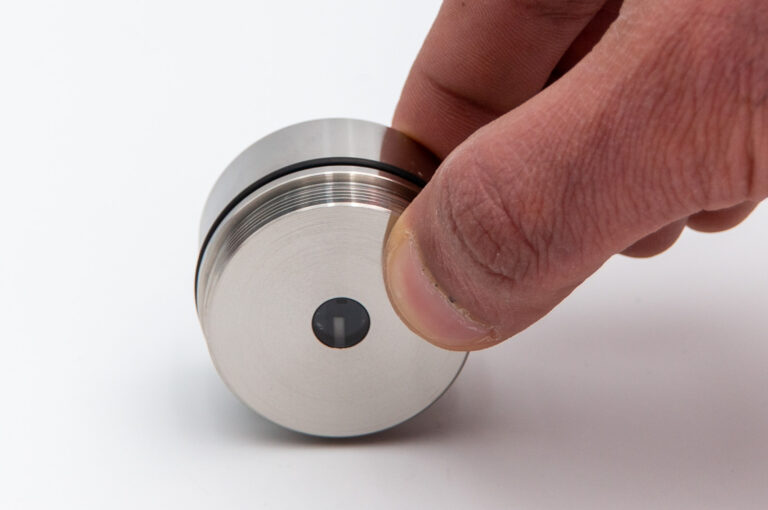

iCS EG – Ethylene Glycol Sensor
This in-line sensor iCS is a small and easy to install concentration sensor for measuring antifreeze concentration, namely ethylene glycol. However, the sensor can be easily adapted to your specific product. It provides consistently reliable measurements and low maintenance efforts.
Features
- Compact and light size, easily fitting for tight conditions
- Simple, flexible, and uncompromising integration into your process
- Technically easy to implement and low-cost integration as well as maintenance
- Longstanding, proven technology is especially effective for monitoring ethylene glycol concentration
Applications
Designed to monitor the concentration of antifreeze ethylene glycol.
Fully compliant with European Safety Standards.
Refractometer Standards
SCHMIDT + HAENSCH instruments meet a wide range of international norms and standards or instruments can be tailored to your specific needs.
You may download the Refractometer Standards for a list of application examples.
| Measuring scales | Ethylen Glycol (EG) Scale % |
| Measuring range | 0 – 55 % |
| Resolution | 0.1 % |
| Accuracy |
± 0.3 % at 10-30 °C and within EG range of 0-5%
2 % at 0-50 °C and within EG range of 0-55 % |
| Operating temperature | – 10… +50 °C |
| Process pressure | max. 4 bar |
| Interface | RS485 Modbus |
| Dimension | 45 mm x Ø 40 mm |
| Weight | approx 250 g |
