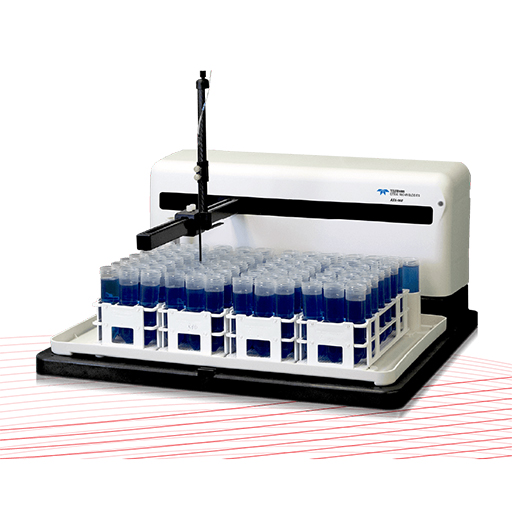

ASX-560 ICP/ICP-MS Autosampler
Four-Rack Autosampler strikes an ideal balance between sample capacity and space savings. Ideal for medium to high-volume sample applications.
Users call CETAC Autosamplers the best on the market, and it’s easy to see why. Put the most reliable, efficient and solidly built autosampler to work in your lab for sample analyses. We have a model to meet your needs, regardless the size of your lab or your specific technique, whether AA, ICP, ICP-MS, TOC, US-VIS, flash/prep chromatography, protein purification, liquid handling or others.
The ASX-560 Four-Rack Autosampler strikes an ideal balance between sample capacity and space savings. Ideal for medium to high volume sample applications, this unit holds up to 360 samples.
- Polymer cover, base, and sample tray
- Carbon fiber arm and z-drive
- No exposed metal parts
- Flowing rinse station with on-board peristaltic pump
- 10 standard positions for 50 mL vials
- Flexible sample rack configurations
- Fast, fluid movement
- Multiple accessory options
Every feature of CETAC Autosamplers is designed to simplify analysis and save time. That starts with making a reliable machine backed by a 2-year warranty. Other invaluable features include:
- Chemically resistant materials
- Optional dual rinse station
- Fluid mechanical operation
- Configurable XYZ movement
- Dust Cover Enclosure (optional)
| Dimensions* (H x W x D) | 62 cm x 58 cm x 56 cm (24.4″ x 22.8″ x 22″) * with sample probe, allow space for cables |
||
| Weight | 11.7 kg (26 lbs) | ||
| Sample Area | X-Axis | 42.0 cm (16.54”) | |
| | Y-Axis | 30.0 cm (11.81”) | |
| Z-Axis | 15.5 cm (6.10″) | | |
| Tray | 4 rack capacity | ||
| Speed | Axis | Min | Max |
| X | 100 mm/sec | 330 mm/sec | |
| Y | 73 mm/sec | 411 mm/sec | |
| Z | 164 mm/sec | 476 mm/sec | |
| Pump | 0 – 80 mL/min | ||
| Autosampler Control Utilities | Autosampler Configuration tool for control of XYZ and pump Firmware Updater Utility IQ/OQ and Log Extractor Utilities | ||
| Communication Interface |
2 Serial (RS-232) ports USB (virtual COM port)
|
||
| Power Requirements | 100-240 VAC, 47-63 Hz, 1.9A | ||
| Options |
Dust Cover Enclosures (ENC-280DC) ASXpress Plus Rapid Sample Introduction System
SimPrep Automated Sample Prep System
SDXHPLD High Performance Liquid Dilution System
|
||
Advanced Mechanical Design
Injection molded parts
- Better chemical compatibility
- Improved high resolution applications
Advanced pump technology
- Easy tubing replacement options
- Quiet operation
- Wide-ranging flow capabilities
- 0.1 – 80 mL/mi
- Conserve expensive rinse solution
Easy serviceability and maintenance
Simple accessory interfaces
Dual rinse station
Advanced Electronics
State-of-the-art movement profile
- Precise, configurable XYZ movement
- Expansive movement speed options
High-resolution positioning
- Flawless accuracy
- Active resonance control
Electronic home position alignment
User-friendly firmware and configuration software utilities
Backward compatible communications
- Seamless upgrade path
Performance proven technology
