Setavap 2 Vapor Pressure Tester – 81000-2
The Setavap 2 vapor pressure tester is used for the measurement of gasoline, solvents, light crude oils, and similar products, using the “Mini” method. Fully evacuated chamber technology guarantees that the sample is tested under a full vacuum, as required by the “Mini” test methods. Unlike the expansion technologies that rely on moving pistons.
Methods: ASTM D5191, IP 481, BS EN 13016-1 & BS 2000-394, CORRELATES WITH: ASTM D323 & ASTM D4953 & ASTM D5482 & ASTM D6378 & IP 69 & BS ISO 3007 & BS 2000-69
- Rapid and automatic testing
- “Mini” method uses 3 ml sample size
- Selectable units – kPa or psi
All functions are accessed via a two-button keypad and rotary control. The digital display guides the operator through the test sequence displays the instrument status and the test results. An audible prompt sounds, when an action is required from the operator.
A sample is injected through a septum, into a fixed volume chamber that is maintained at 37.8 °C ± 0.1 °C. The vapour to liquid ratio is 4:1. The pressure is automatically measured at one minute intervals until three readings are within 0.1 kPa, which determines the end of the test.
Results can be displayed as total pressure (Ptot), dry vapour pressure equivalent (DVPE), EPA requirements, or Reid (crude) using pre-programmed correlation equations. These may be printed via the integral RS232 port and optional Data Printer (81002-3). A facility is included to allow two part tests (Pabs) to be conducted at 37.8 °C.
All valve operations are automated including sample draining also chamber venting and purging. The valves utilise solvent resistant Kalrez seals. Calibration of temperature and pressure is automated and simple to carry out.
Supplied with: septum holder, waste container, mains lead, and instruction manual.
|TEST TEMPERATURE||37.8 °C (100 °F) ±0.1 °C|
|TEST PRESSURE RANGE||0 to 200 kPa ±0.5 kPa (0 to 29 psi ±0.1psi)|
|PRESSURE RESOLUTION||0.1 kPa (0.1 psi)|
|SAMPLE SIZE||3 ml|
|VAPOUR TO LIQUID RATIO||4:1|
|DISPLAY UNITS OF PRESSURE||kPa or psi (user selectable)|
|VACUUM REQUIREMENT||better than 0.01 kPa (abs)|
|VOLTAGE||110/120 V or 220/240 V, 50/60 Hz (switchable)|
|SIZE (HXWXD)||37 x 13 x 20 cm|
|CCCN CODE||Tariff 90262020|
Accessories, Spares, Calibration, and Training
Data Printer – 81002-3
Printer Paper (Pack of 20) – 81002-301
Thermometer Digital: -199 to 199 °C UKAS Calibrated – 82012-0
Vacuum Pump – 22422-6
Syringe with Luer Lock and Needles – 81003-0
Vacuum Pump – 80004-0

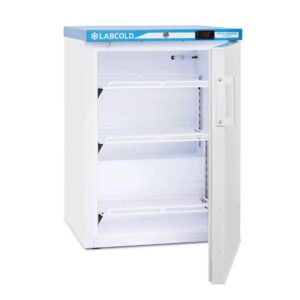

Laboratory Refrigerator – 93700-0
Septum (Pack of 250) – 22420-033
Waste Container – 81000-003
Septum Holder – 81000-005
Needles for syringe (Pack of 2) – 81003-002
Syringe 5 ml, with Luer Lock – 81003-001
Vapor Pressure – Certified Reference Material, Pentane 200 ml – 80610-0
Digital Vacuum Gauge – 80008-0
Portable Digital Barometer – 99910-2
MTVM – Motor Gasoline 500 ml – 99854-0
Pelican™ Storm Case™ for the Setavap 2 – CASE-VAPII
